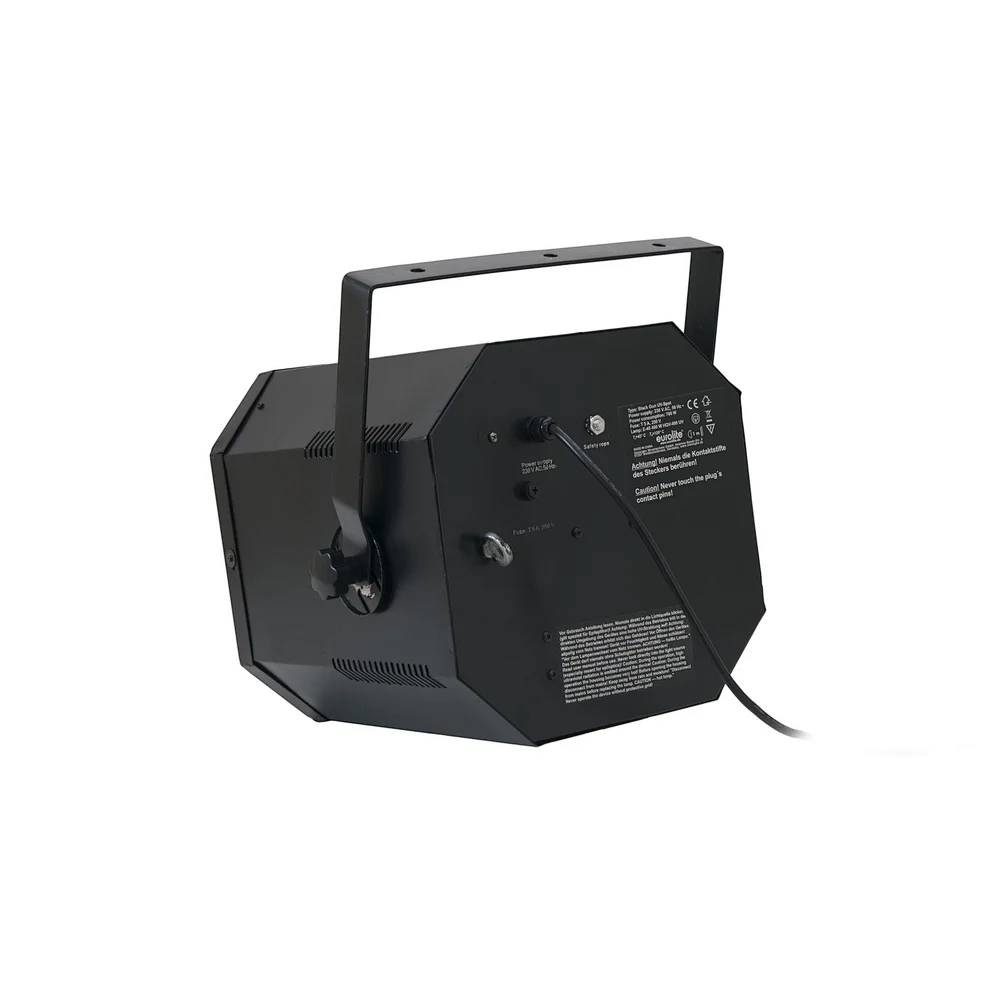

UVG-400
UVG-400
Quantity
- High-quality reflector
- For E-40/400 W UV-lamp
- With security grille
- Enormous strong UV-beam
- Narrow beam angle
- Suitable for larger distances
- The device is cooled by passive convection
- Controlling by plug and play
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 600 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Fixed power supply cord with safety plug |
| Fuse: | 5 x 20 mm, T 4 A Fuse replaceable |
| Lamp type: | Discharge lamp |
| Cooling: | Passive convection |
| Control: | Plug and play |
| Beam angle: | 60° |
| Beam angle (1/2 peak): | 60° |
| Housing color: | Black |
| Material: | Metal |
| Dimensions: | Width: 35,5 cm Depth: 35,5 cm Height: 30,5 cm |
| Weight: | 8,95 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Light Source Type: Discharge
Light Source Power:400 W
Lamp Socket：E40
Beam Angle Circular：120°
Power Supply：220V-240 VAC 50 Hz
Power Consumption：400 W
Height (mm)：383 mm
Width (mm)：370
Width (mm)：335
Weight：10KG
IP Rating：IP 20 indoor use
Housing：Metal
Colour： Black
Cooling :Passive
Mounting Options:Bracket, Clamp
Safety Attachment:Yes
Maximum Ambient Temperature:40 °C
Included Cables：Fixed Cable
Included Rigging：Bracket
