PNS30B-T
PNS30B-T
Quantity
Pinspot with PAR-36 6V/30W lamp
Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm

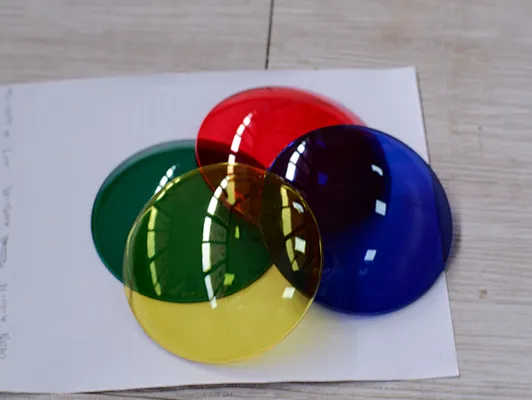

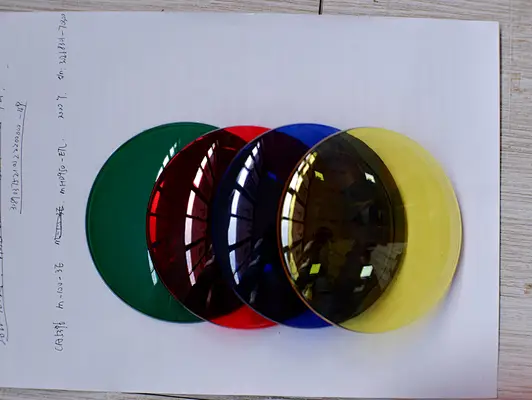

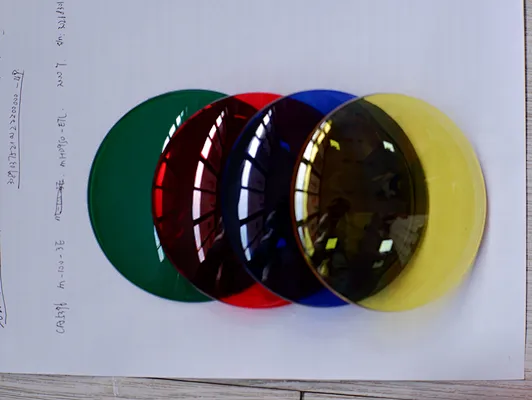

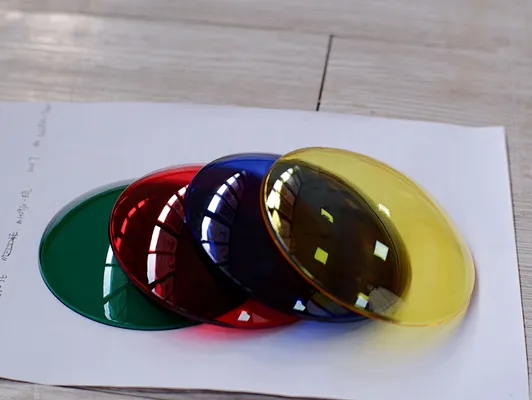

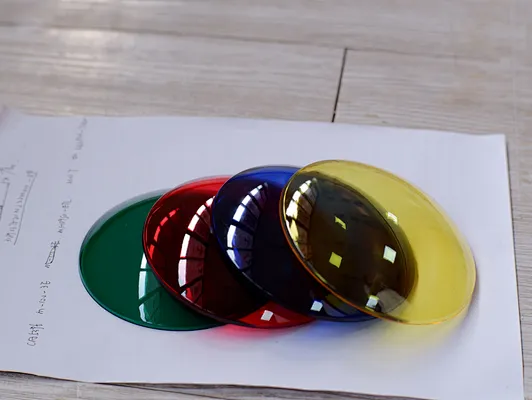

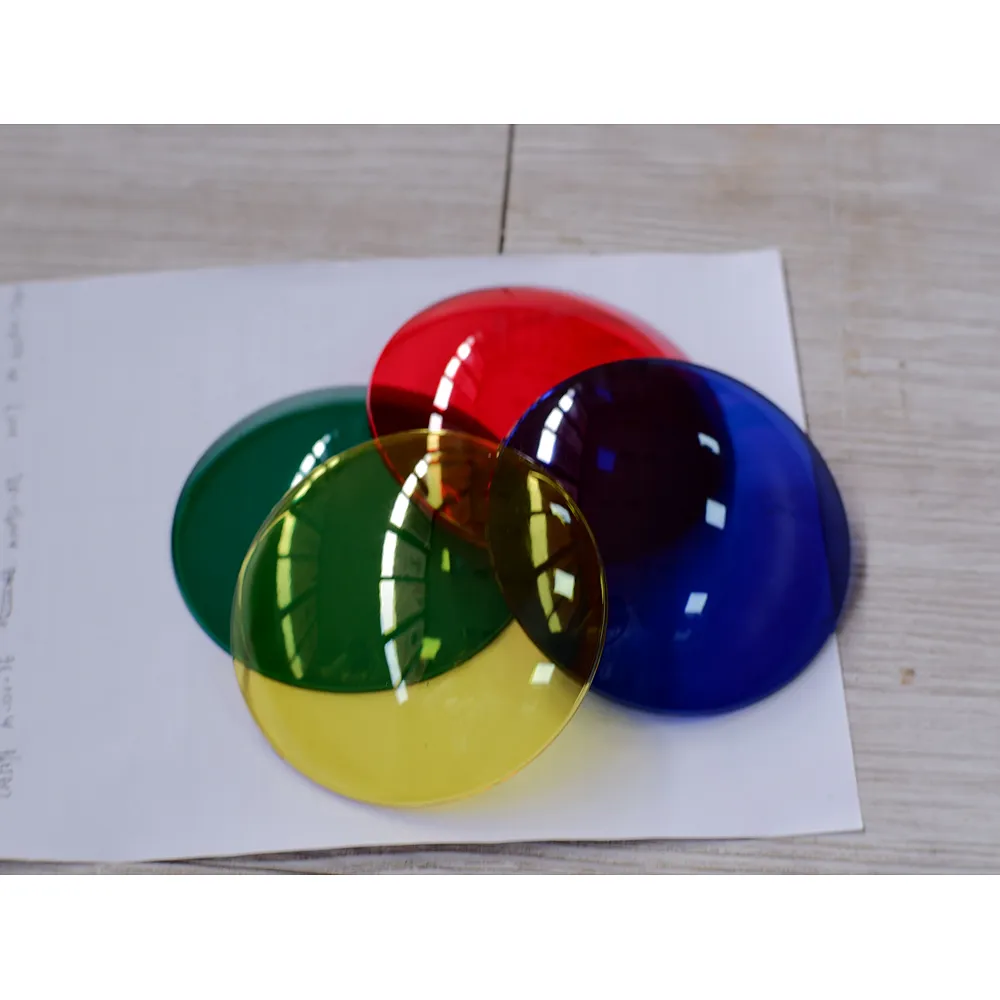

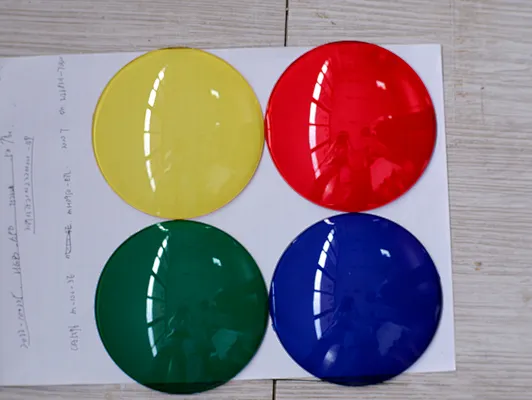

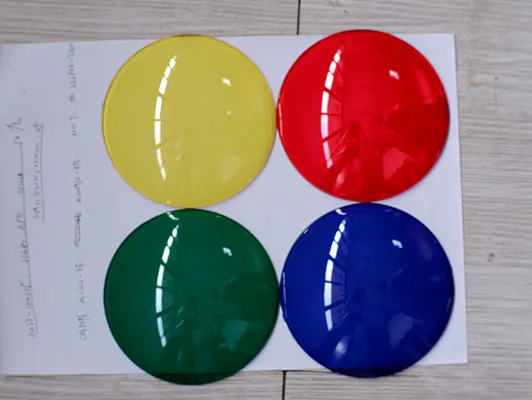

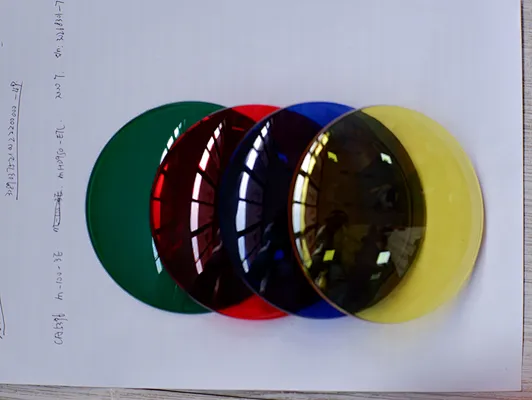

Color caps or color foils can be attached in front of the lens
For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
Low power consumption
Diverse beam angles are possible when using alternative illuminants
Locking possibility at the mounting bracket
Available in silver or black
Comes in a sales-promoting 4-color carton
Controlling by plug and play
lamp
Very high color rendering index (CRI)
PACKAGING UNITS
Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
Color caps or color foils can be attached in front of the lens
For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
Low power consumption
Diverse beam angles are possible when using alternative illuminants
Locking possibility at the mounting bracket
Available in silver or black
Comes in a sales-promoting 4-color carton
Controlling by plug and play
lamp
Very high color rendering index (CRI)
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 30 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Suitable lamp: | PAR-36 G53STC |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,9 m |
| Base: | Wires |
| Control: | Plug and play |
| Housing color: | Black |
| Material: | Metal |
| Dimensions: | Length: 16 cm Width: 15,5 cm Height: 17 cm |
| Weight: | 1,23 kg |
| Lamp | |
| Voltage (lamps): | 6,4 V |
| Nominal wattage: | 30 W |
| Base: | G53STC |
| Lamp type: | Halogen lamp; clear lamp |
| Lamp specification: | Dimmable |
| Beam angle: | 6° |
| Color temperature: | 3000K |
| Color rendering index (CRI) more than: | 95 Ra |
| Shape: | PAR-36 |
| Mounting bracket | |
| Diameter mounting holes: | 3 x 10 mm; 1 x 8 mm |
| Material: | Metal, 2 mm |
| Lamp clamping ring | |
| Material: | Metal |
| Color: | Silver |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| PU | EAN | WEIGHT | DIMENSIONS |
| 1 | 4026397380804 | 1,30 kg | 13cm x 13cm x 19cm |
| 12 | 4026397463040 | 16,20 kg | 52,5cm x 40,5cm x 22cm |
