PFS-150W
PFS-150W
Quantity
Ideal for theaters and stages
High-quality housing for high stability
Locking option on the retaining bracket
Control panel with LCD display for easy configuration
Master/slave operation for synchronous processes with multiple devices
strobe effect
Electronic dimmer (0-100%)
Manual focus
Manual zoom 13-28°
Color filter frame and 4 shutter sliders included
LED: 1 x COB (chip-on-board) 100 W warm white (WW)
Can be operated in 2 CH DMX mode
The device is cooled by fans
Controllable via DMX; standalone
Already pre-programmed with LED PC Control 512; Light Captain
Power supply: 100-240 V AC, 50/60 Hz
Total connected load: 170W
Degree of protection: IP20

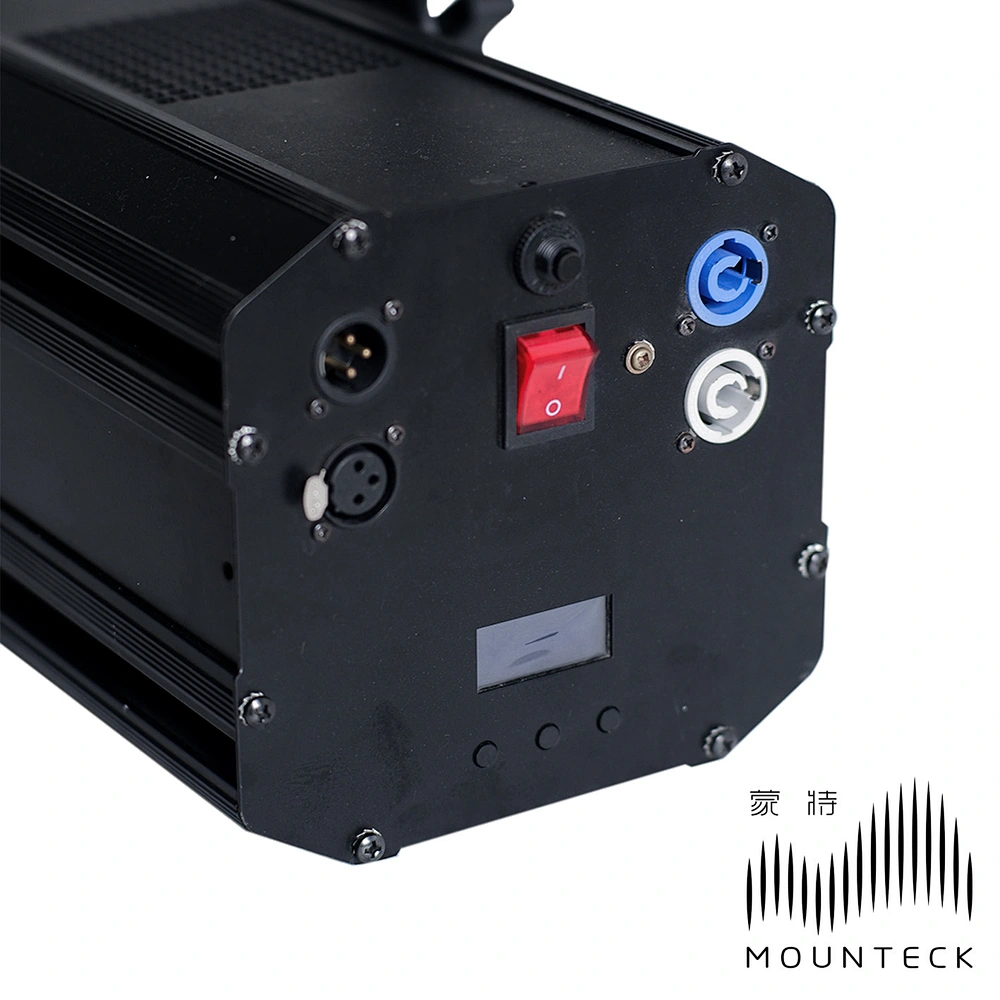

Power connection: power supply via PowerCON (blue), built-in version power connection cable with safety plug (supplied)
Power output: 1 x PowerCON (grey), built-in version
Lamp type: LED lamp
LED: 1 x COB (chip-on-board) 100 W warm white (WW)
DMX channels: 2
DMX input: 1 x 3-pin XLR (M) built-in version
DMX output: 1 x 3-pin XLR (F) built-in version
Cooling: fan
Control: DMX; standalone; LED PC Control 512; Light Captain
Beam angle: 13 - 28°
Beam angle (1/2 peak): 13 - 28°
Beam angle (1/10 peak): 13 - 28°
Housing color: black
Measurements
Length: 59 cm
Width: 26cm
Height: 32cm
Weight: 9.75kg
Noise classification: Class 2 (light noise)
Legal Specifications
Special product: Not intended for room lighting in households
Intended use: lighting for show effects
