PAT-751
PAT-751
Quantity

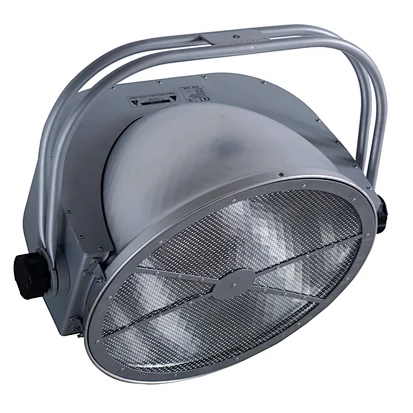

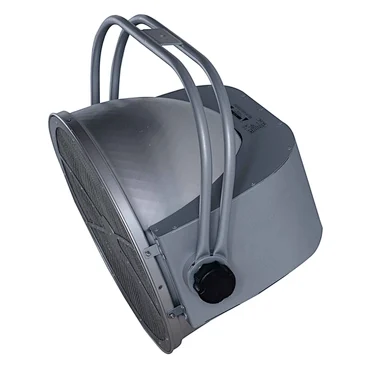

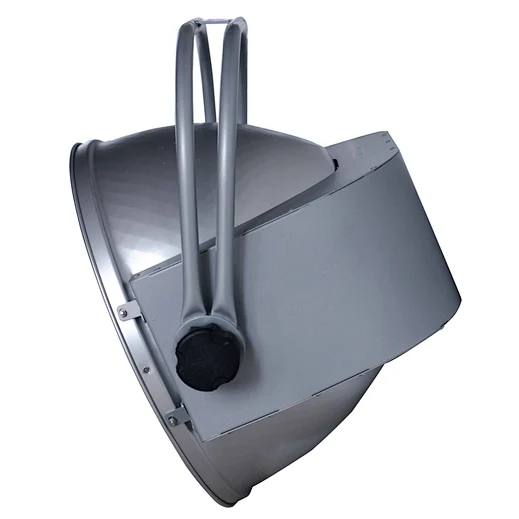

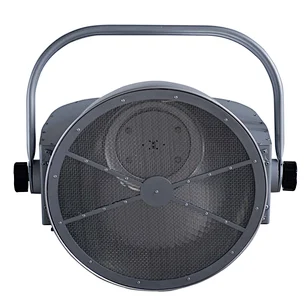

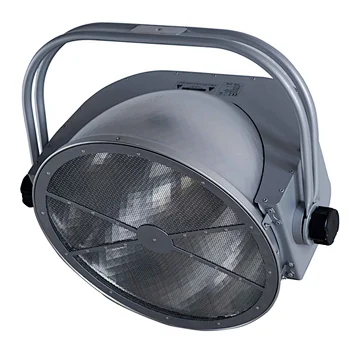

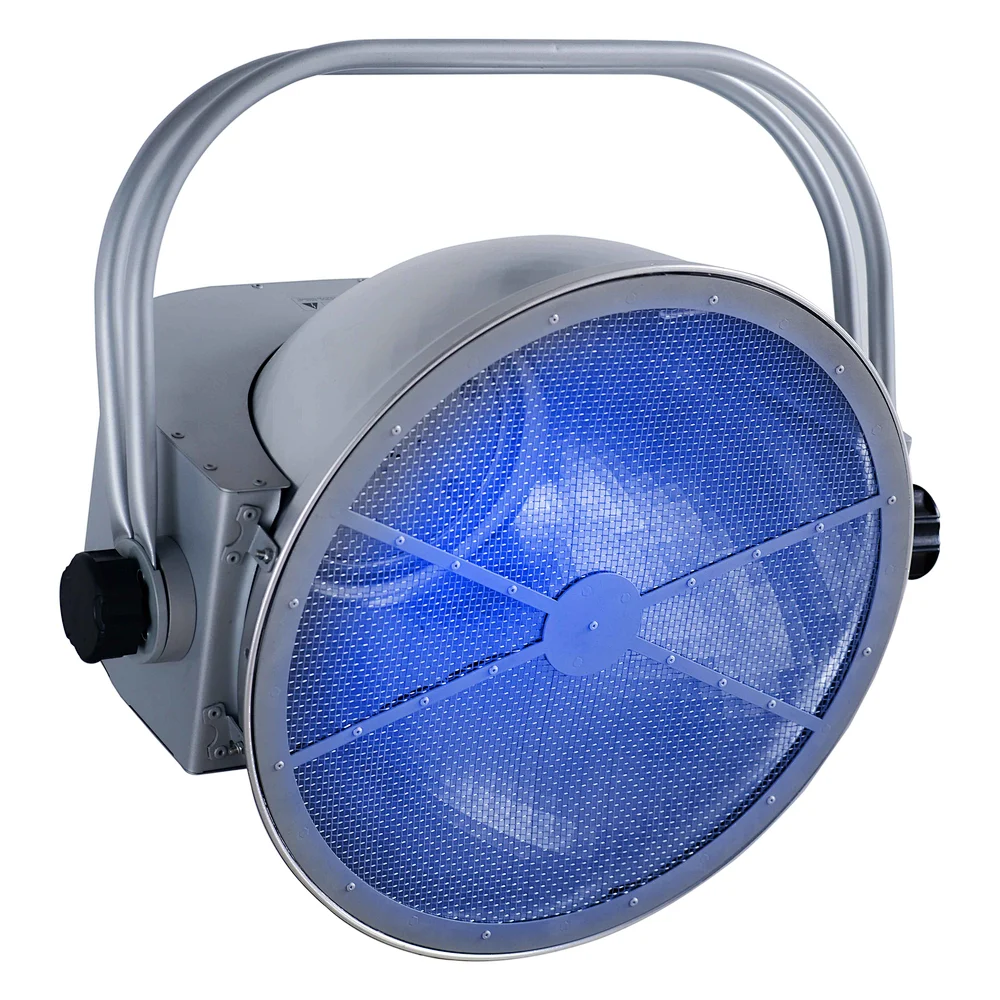

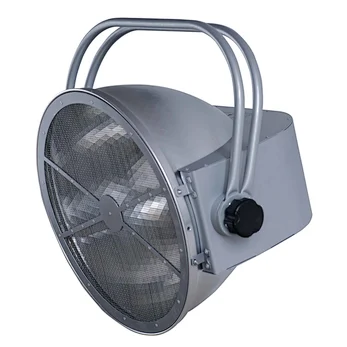

PAT-751 is a great complement for the most creative lighting designs. With the Retro look the PAT-751 is ideal for live, theatre and TV applications. In addition to the tungsten lamp, the PAT-751has a RGB LED Blaze background effect with strobe function and colour macros which gives an extra dimension to this fixture. The combination of both light sources can create great atmospheres on stage and can even be used for blinding FX. The PAT-751 can be used in all demanding DMX modes from 1 up to 11 channels. The manual option gives you the opportunity to run the fixture in stand-alone modus.
Light Source Type ：Tungsten
Light Source Quantity：1
Light Source Power：575W
LED Color Type:RGB
Refresh Rate：50Hz
Lamp Socket：GY9.5
Lumen Total:15000 lm
Control Mode：Built-in Program, DMX, Manual
DMX Channels：1, 2, 4, 11
Protocols：DMX
Display:LCD
Dim Curve:Linear, Square, I-Square, S-Curve
Dimmer:0-100 %
Strobe:0-20 Hz
Power Supply：100-240 VAC 50-60 Hz
Power Consumption：640W

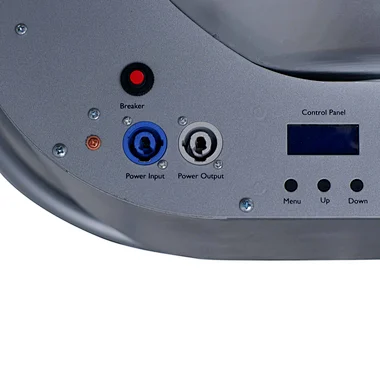

Power Connector in：powerCON Blue
Power Connector out:powerCON Grey

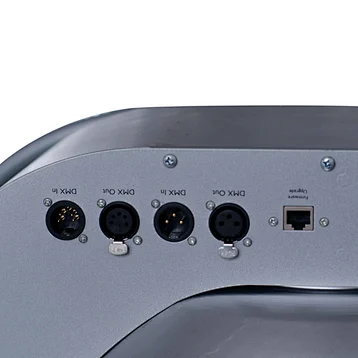

DMX Connector in:XLR 3P, XLR 5P
DMX Connector out:XLR 3P, XLR 5P
Length (mm)：435 mm
Width (mm)：650mm
Height (mm)：505 mm
Weight：11KG
IP Rating:IP20(indoor use only )
Housing:Aluminium
Color:Silver
Mounting Options:Clamp
Maximum Ambient Temperature:40 °C
Maximum Surface Temperature:80°C
Included Cables:powerCON cable
Included Accessories:User Manual
Included Rigging:Bracket
