PAT-501
PAT-501
Quantity
The PAT-501 is a great complement for the most creative lighting designs. With the Retro look the PAT-501 is ideal for live, theatre and TV applications. In addition to the tungsten lamp, the PAT-501 has a RGB LED Blaze background effect with strobe function and colour macros which gives an extra dimension to this fixture. The combination of both light sources can create great atmospheres on stage and can even be used for blinding FX. The PAT-501 can be used in all demanding DMX modes from 1 up to 11 channels. The manual option gives you the opportunity to run the fixture in stand-alone modus.
Light Source Type ：Halogen
Light Source Quantity：1
Light Source Power：300W
LED Color Type:RGB
Refresh Rate：50Hz
Lamp Socket：GY9.5
Lumen Total:5500 lm
Control Mode：Built-in Program, DMX, Manual
DMX Channels：1, 2, 4, 11
Protocols：DMX
Display:LCD
Dim Curve:Linear, Square, I-Square, S-Curve
Dimmer:0-100 %
Power Supply：240 VAC 50-60 Hz
Power Consumption：350W

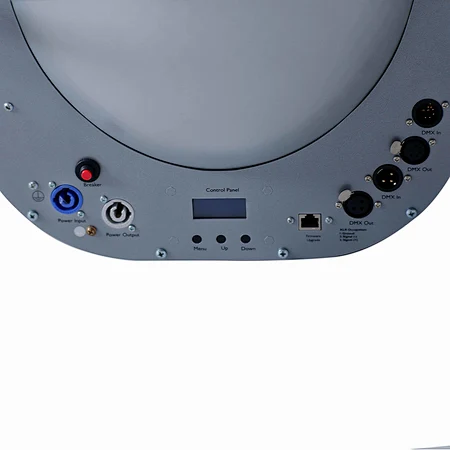

Power Connector in：powerCON Blue
Power Connector out:powerCON Grey
DMX Connector in:XLR 3P, XLR 5P
DMX Connector out:XLR 3P, XLR 5P
Length (mm)：450 mm
Width (mm)：490mm
Height (mm)：335mm
Weight：6.26KG
IP Rating:IP20(indoor use only )
Housing:Aluminium
Color:gray
Mounting Options:Clamp
Maximum Ambient Temperature:40 °C
Maximum Surface Temperature:80°C
Included Cables:powerCON cable
Included Accessories:User Manual
Included Rigging:Bracket
