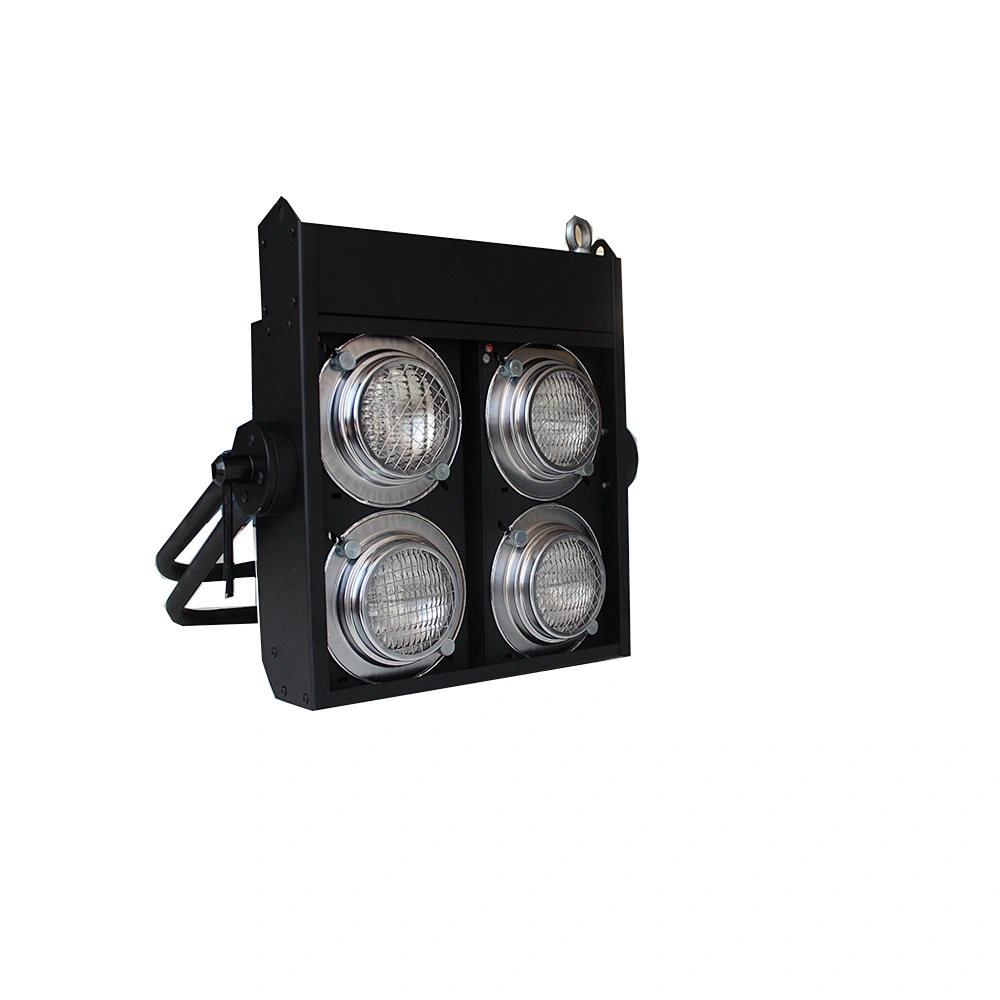

Par36-4b four eye lamp
Par36-4b
Quantity
Features:the stage blinder 4DMX is a blinder system from showtec .
Input voltage :240V AC ,50Hz
Power consumption :2300w
Light source:4XPar 36 120V/650W(DWE)
Control :DMX-512
Control modes:Auto ,Manual ,DMX
Control Modes: 2channels
Dimmer:0-100%
Housing :Aluminum
Color:black
Connections:schuko power cable(0.8m)&3-pin XLR IN/OUT
IP rate :IP-20
Circuit breaker:16A/250V
Size :470X110X425MM(LXWXH)
Weight:6.9KG
Features
For 4 PAR 36 lamps
Each lamp is routed individually to an internal luster terminal so that any lamp version can be easily wired
Extreme and lightning-fast light development
Horizontally adjustable rows of lamps open up new possibilities
The device is cooled by passive convection cooling
Controllable via plug and play
The slightly different"light effect"
Known from large open-air concerts and equipped with 4 or 8 par 36 lamps, this light effect is intended for use on stages as well as in discotheques.
Depending on the version, there are 4 or 8 lamps in the robust housing, which are switched on together and blind the audience so much for a short time that the surroundings can no longer be perceived.
An attractive price/performance ratio also makes this special light effect interesting for smaller discos or mobile discos.
The audience blinder can be used both standing and hanging and has two stable locking screws.
Furthermore, the two rows of lamps can be turned in different directions, so that a wide spread is made possible here.
Input voltage :240V AC ,50Hz
Power consumption :2300w
Light source:4XPar 36 120V/650W(DWE)
Control :DMX-512
Control modes:Auto ,Manual ,DMX
Control Modes: 2channels
Dimmer:0-100%
Housing :Aluminum
Color:black
Connections:schuko power cable(0.8m)&3-pin XLR IN/OUT
IP rate :IP-20
Circuit breaker:16A/250V
Size :470X110X425MM(LXWXH)
Weight:6.9KG
Features
For 4 PAR 36 lamps
Each lamp is routed individually to an internal luster terminal so that any lamp version can be easily wired
Extreme and lightning-fast light development
Horizontally adjustable rows of lamps open up new possibilities
The device is cooled by passive convection cooling
Controllable via plug and play
The slightly different"light effect"
Known from large open-air concerts and equipped with 4 or 8 par 36 lamps, this light effect is intended for use on stages as well as in discotheques.
Depending on the version, there are 4 or 8 lamps in the robust housing, which are switched on together and blind the audience so much for a short time that the surroundings can no longer be perceived.
An attractive price/performance ratio also makes this special light effect interesting for smaller discos or mobile discos.
The audience blinder can be used both standing and hanging and has two stable locking screws.
Furthermore, the two rows of lamps can be turned in different directions, so that a wide spread is made possible here.
| Spannungsversorgung: | 230 V AC, 50 Hz |
| Gesamtanschlusswert: | 2600 W |
| Schutzart: | IP20 |
| Schutzklasse: | SK I |
| Stromanschluss: | Festes Stromanschlusskabel mit Schutzkontaktstecker |
| Kabellänge: | Ca. 0,9 m |
| Sockel/Fassung: | Kabel |
| Lampenart: | Halogenlampe |
| Betriebsdauer: | Max. 3 min. |
| Kühlung: | Passive Konvektionskühlung |
| Ansteuerung: | Plug and play |
| Bauform: | PAR-36 |
| Gehäusefarbe: | Schwarz |
| Maße: | Breite: 47,5 cm Tiefe: 11 cm Höhe: 51,5 cm |
| Gewicht: | 6,00 kg |
| Rechtliche Spezifikationen | |
| Spezialprodukt: | Nicht zur Raumbeleuchtung in Haushalten vorgesehen |
| Verwendungszweck: | Beleuchtung für Show-Effekte |
