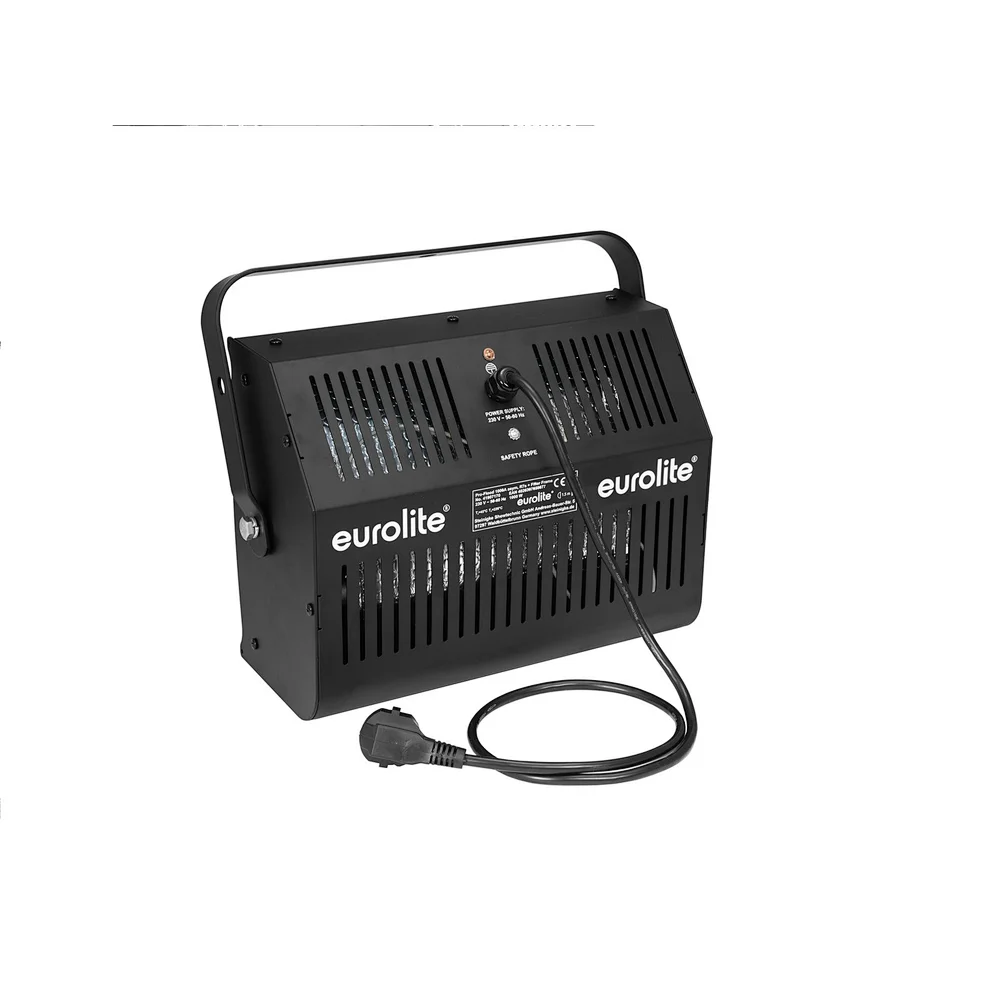

FLD-1000A
FLD-1000A
Quantity
- Elaborate workmanship
- Sturdy steel version
- High-quality reflector
- For maximally 1000 W pole-burner
- Beam angle 100°
- Intelligent heat-release
- Symmetrical and asymmetrical version
- For stages, theatres, bands, concerts etc.
- For R-7-s pole-burner
- With color filter frame and protective grille (regulation)
- The device is cooled by passive convection
- Controlling by plug and play
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 1000 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Suitable lamp: | Double-sided socket R7s |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0,9 m |
| Cooling: | Passive convection |
| Control: | Plug and play |
| Beam angle: | 70° |
| Beam angle (1/2 peak): | 70° |
| Beam angle (1/10 peak): | 100° |
| Housing color: | Black |
| Material: | Metal, 2 mm |
| Dimensions: | Width: 35 cm Depth: 14 cm Height: 29,5 cm |
| Weight: | 3,40 kg |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 2 x 12 mm |
| Material: | Metal, 3 mm |
| Dimensions: | Width: 32,5 cm Depth: 3 cm |
| Filter frame | |
| Material: | Metal, 0,5 mm |
| Dimensions: | Width: 29,2 cm Height: 24,5 cm |
| Grid | |
| Grid size: | 4 x 4 mm |
| Material: | Metal |
| Dimensions: | Width: 26,7 cm Depth: 2 mm Height: 21,7 cm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
